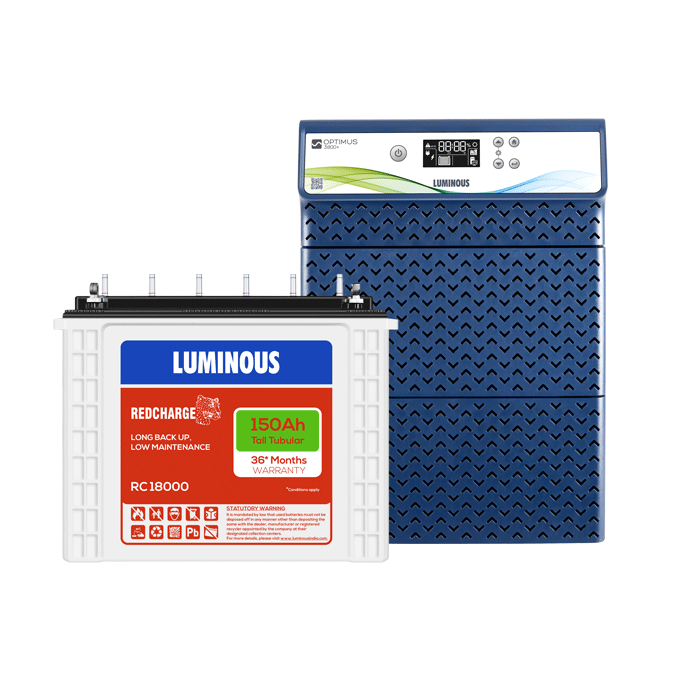

Combo – Optimus 3800 /36V with RC 18000 PRO

Optimus 3800+

Capacity – 3500 VA , Maximum bulb load – 2800 W
Technology – Sine Wave Technology
No of battery supported – Three Battery (12V each)
Display: State of the art LCD display which shows real time Inverter battery performance statistics
Charging current: User settable charging current between (8A-21A) for optimized performance.
Optimized performance: User settable Output voltage between (200V-240V) to optimize between Longer Backup time and Performance
Fast battery charging: Low voltage battery charging begins from 95V and fast charging from 135V input supply voltage
Mode selector: Eco and UPS mode availability
Safety for your home: Complete safety for your home with protection features and alarms on short circuit, overload, Over temperature and low battery and safety for your equipment’s as it supplies grid like power to the connected load
Battery Supported: Supports all Battery types (Flat, Tubular and SMF) and all battery capacities (80Ah-220Ah)

Warranty – 24 Months (For detailed terms and conditions of warranty please refer to the warranty card supplied along with the product”) For product installation and usage details refer to the product Manual downloadable by scanning the QR code on the front panel of inverter using any QR code scanner App.

Dimension (in cm) -30 X 41.7 X 45.2

What’s in box? – 1N Inverter, 1N Warranty card

Net Weight (in kg) – 31.5 ± 3%

Battery RC 18000 PRO
Highest selling LUMINOUS battery range in TALL tubular category . HADI HPLC plates : Worry free superior performance with least battery maintenance. Tower type TT container, ensuring more than 20% extra electrolyte, ensuring lesser topping up frequency & better thermal management. Provided with 6 nos. free float indicators for ease of battery maintenance. Thick tubular spines are of low antimony alloy and cast in HADI for superfine grain structure.

Capacity: 150 Ah

Warranty – 18 Months (Free of cost) + 18 Months (Pro-rata) In case battery develops any technical fault, contact customer care executive at 99999 33039 or send e-mail at care@luminousindia.com or please refer – https://www.luminousindia.com/terms-conditions.

Dimensions (in cm) – 50.2 x 19.1 x 44

Net Weight (in kg) – 52.5± 5%kg
